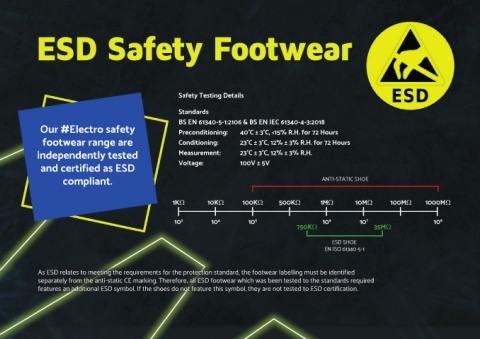

ESD Safety Footwear
Safety Testing Details
Standards
BS EN 61340-5-1:2106 & BS EN IEC 61340-4-3:2018
Our #Electro safety Preconditioning: 40°C ± 3°C, <15% R.H. for 72 Hours
footwear range are Conditioning: 23°C ± 3°C, 12% ± 3% R.H. for 72 Hours
independently tested Measurement: 23°C ± 3°C, 12% ± 3% R.H.
Voltage: 100V ± 5V
and certified as ESD
compliant. ANTI-STATIC SHOE
1KΩ 10KΩ 100KΩ 500KΩ 1MΩ 10MΩ 100MΩ 1000MΩ
10 3 10 4 10 5 10 6 10 7 10 9
750KΩ 35MΩ
ESD SHOE
EN ISO 61340-5-1
As ESD relates to meeting the requirements for the protection standard, the footwear labelling must be identified
separately from the anti-static CE marking. Therefore, all ESD footwear which was been tested to the standards required
features an additional ESD symbol. If the shoes do not feature this symbol, they are not tested to ESD certification.
